01

L-S-9 Ultra-thin Large Scissor Lift

·  4000 KG(9,000 LB) lifting Capacity

·  Up to 2000mm(78.4/5”) max lifting height

·  Large Platform

·  surfaced mounted or flush mounted

·  Air actuated locks

·  Zerk grease fittings at each hinge point

·  Separate Self-Contained Control Panel

    Contact us
    product details

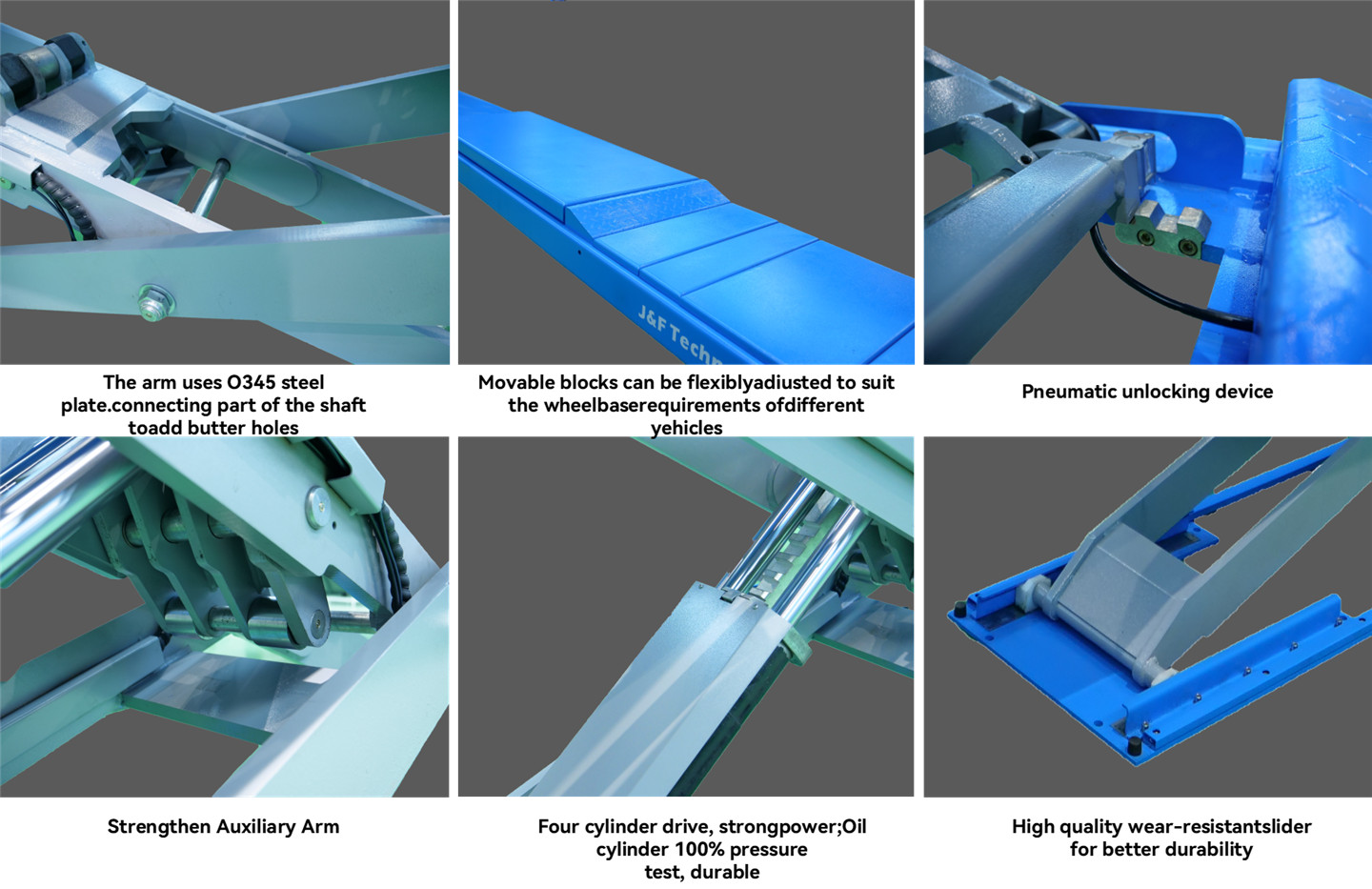

    Product advantages

    • s9

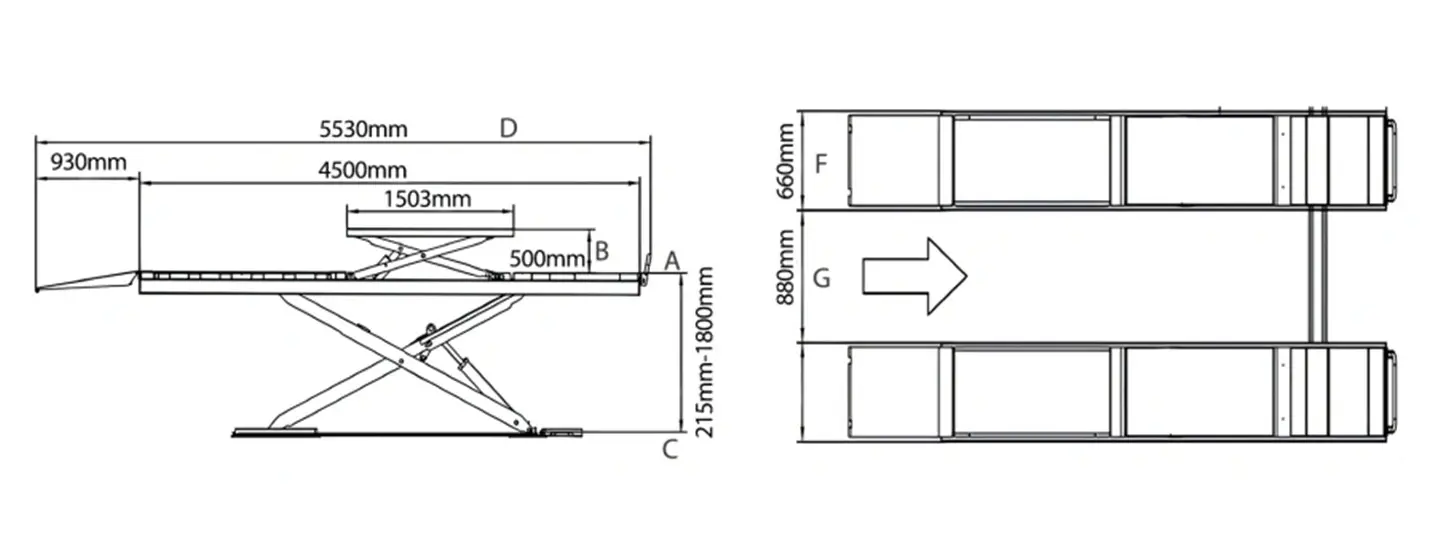

    Overall Dimension

    • L-S-9

    Product features

    MODEL NO. L-S-9
    Lifting Capacity 4T/9000lb
    Rolling Jack Copacity 4T/9000lb
    Lifting Height 1800mm/70.9"
    Rolling Jack Lifting Height 500mm/19.7"
    Length overall 5530mm/217.7"
    Width overall 2200mm/86.6"
    Runway Length 660mm/26"
    Distance between runways 880mm/34.6"
    Lifting Time 50s
    Power Supply 380v 220v 2.2kw
