01

L-S-7 Portable Scissor Lift

·  3000 KG(7,000 LB). Capacity

·  Up to 1000mm(39 2/5”) max lifting height

·  No above ground obstruction

·  Air actuated locks

·  Movable kit optional

·  Separate Self-Contained Control Panel

    Contact us
    product details

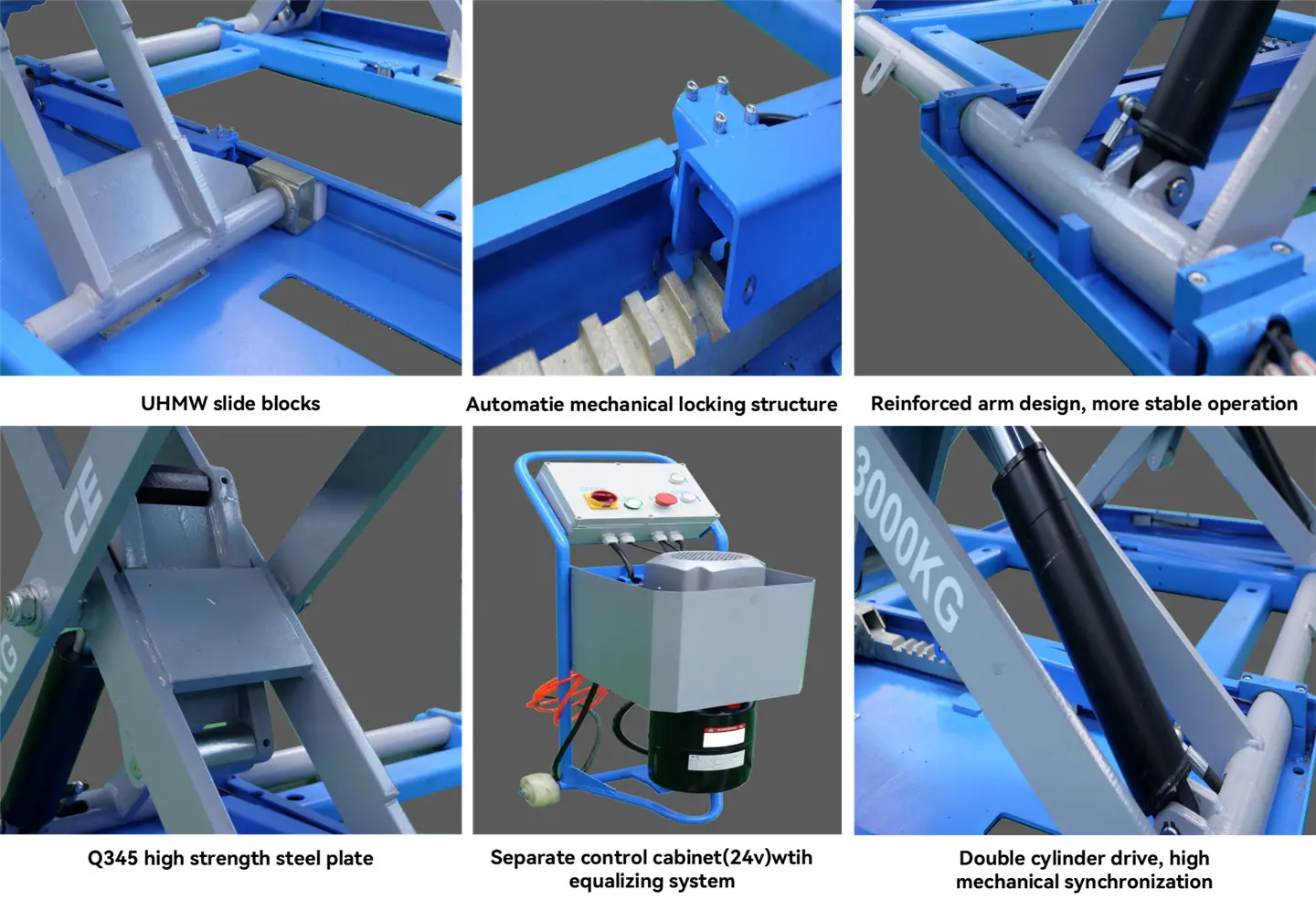

    Product advantages

    • s7

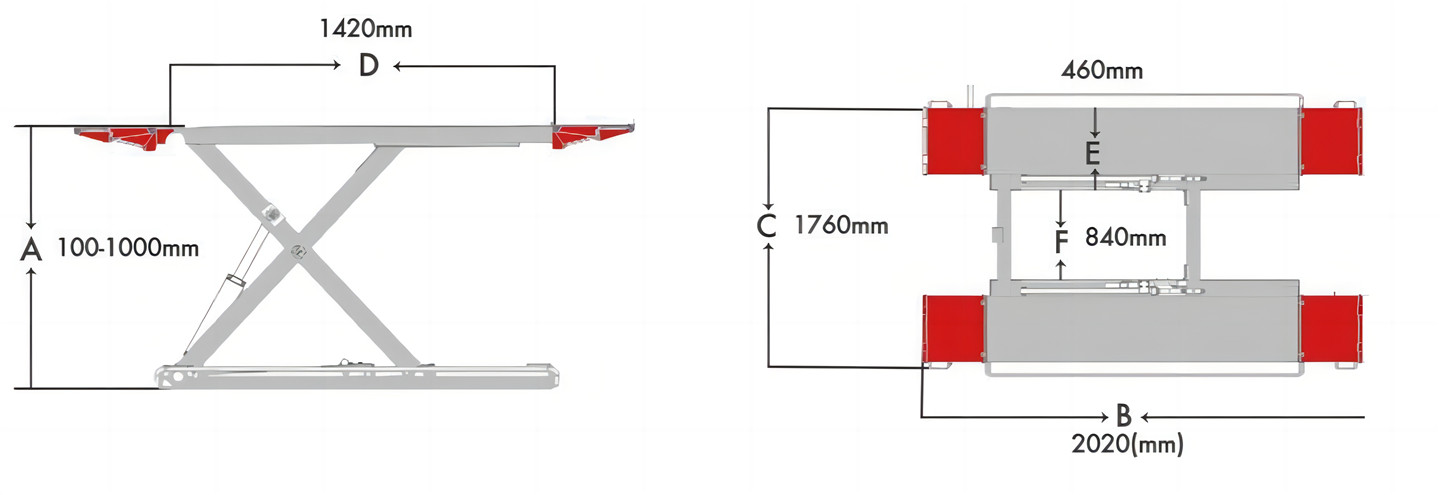

    Overall Dimension

    • L-S-7

    Product features

    MODEL NO. L-S-7
    Lifting Capacity 3Ton/7000lb
    Lifting Height             100-1000mm /3.9"-39.4”
    Length overall 2020mm/79.5”
    Width overall 1760mm/69.3"
    Runway Length 1420mm/55.9"
    Distance between runways 840mm/33.1"
    Lifting Time 50s
    Power Supply 380v 3ph 50hz220v 1ph 50hz
    Muttiple choice for
    110/220/230/240/380/400/415V
