01

L-S-6 Ultra-thin Scissor Lift

·  3500 KG(8,000 LB). Capacity

·  up to 1850mm(72.4/5”) max lifting height

·  Adjustable width

·  Open middle for easy access

·  Locking approach ramps

·  Air actuated locks

·  Zerk grease fittings at each hinge point

·  Separate Self-Contained Control Panel

    Contact us
    product details

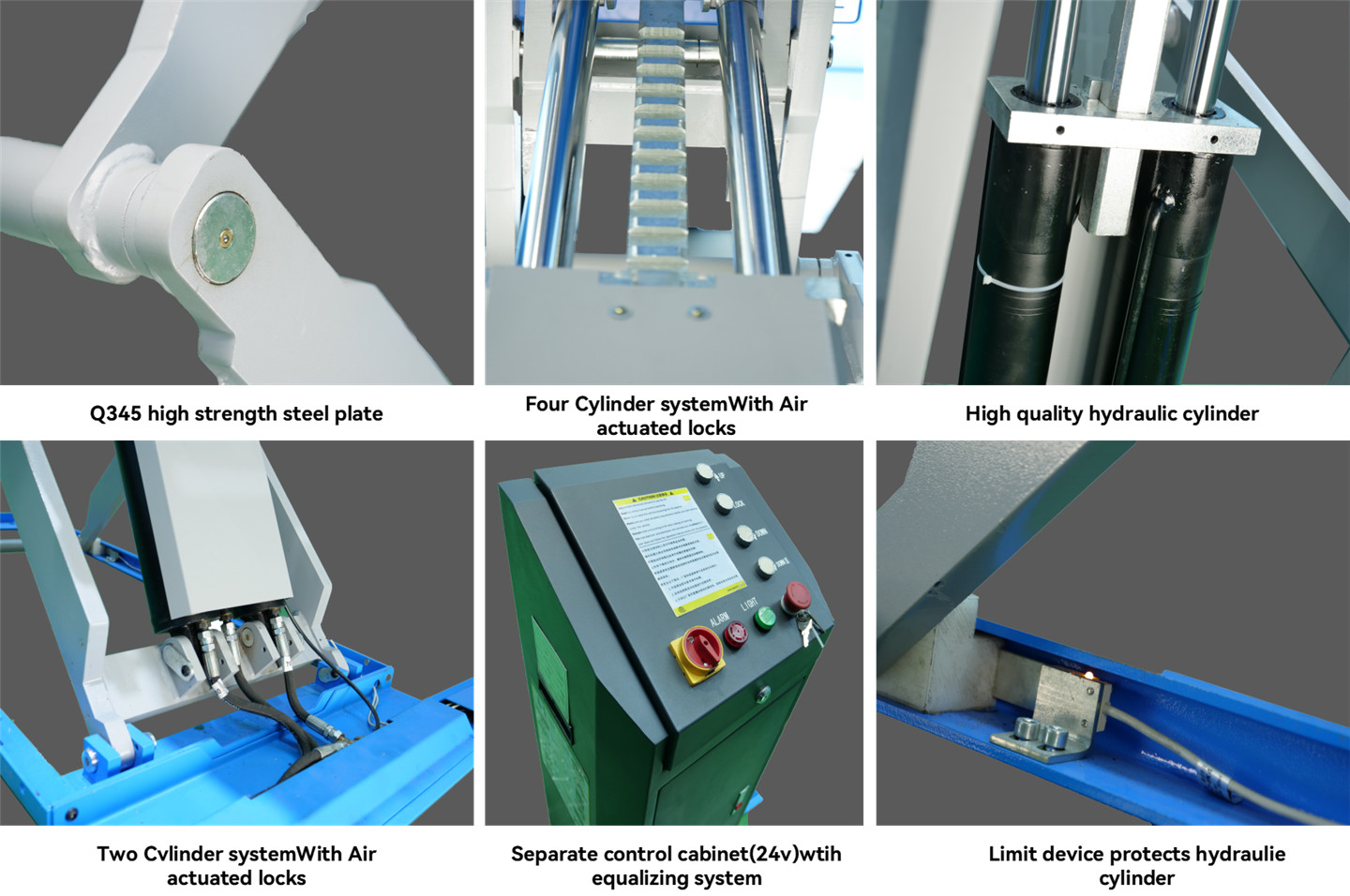

    Product advantages

    • s6

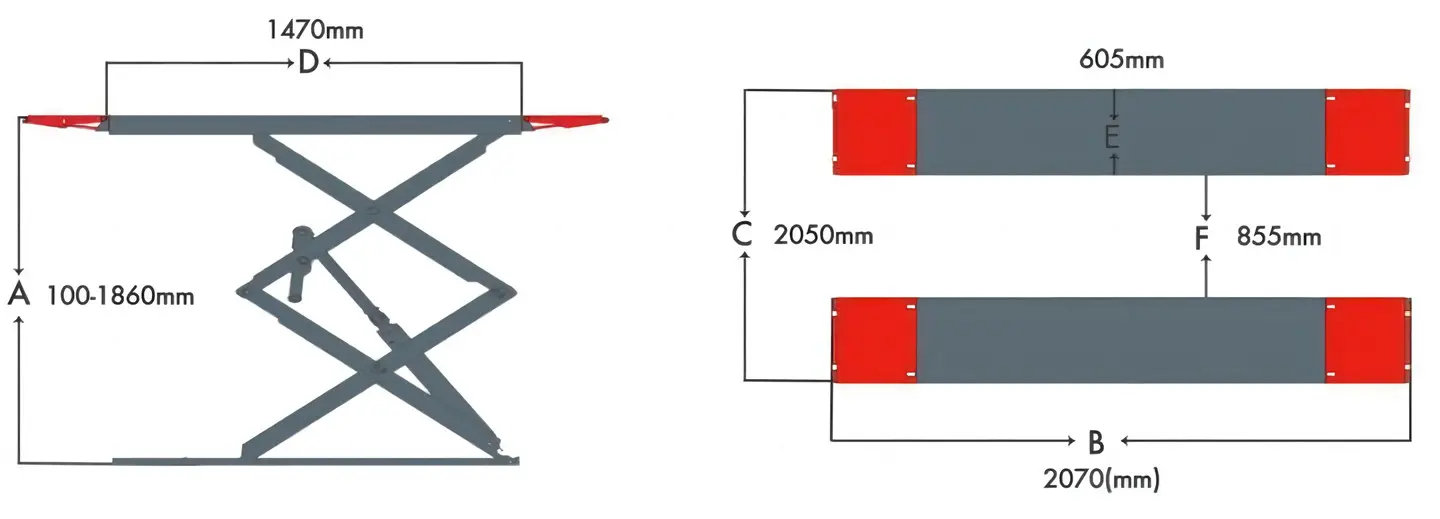

    Overall Dimension

    • L-S-6

    Product features

    MODEL NO. L-S-6
    Lifting Capacity 3.5Ton/8000lb
    Max Lifting Height            100-1860mm/3.9"-73.2"
    Length overall 2070mm/81.4”
    Width overall  2050mm/80.7"
    Runway Length 1470mm/57.8"
    Distance between runways 855mm/33.6"
    Lifting Time 50S
    Power Supply 380v 3ph 50hz 220v 1ph 50hz
    Muttiple choice for
    110/220/230/240/380/400/415V
