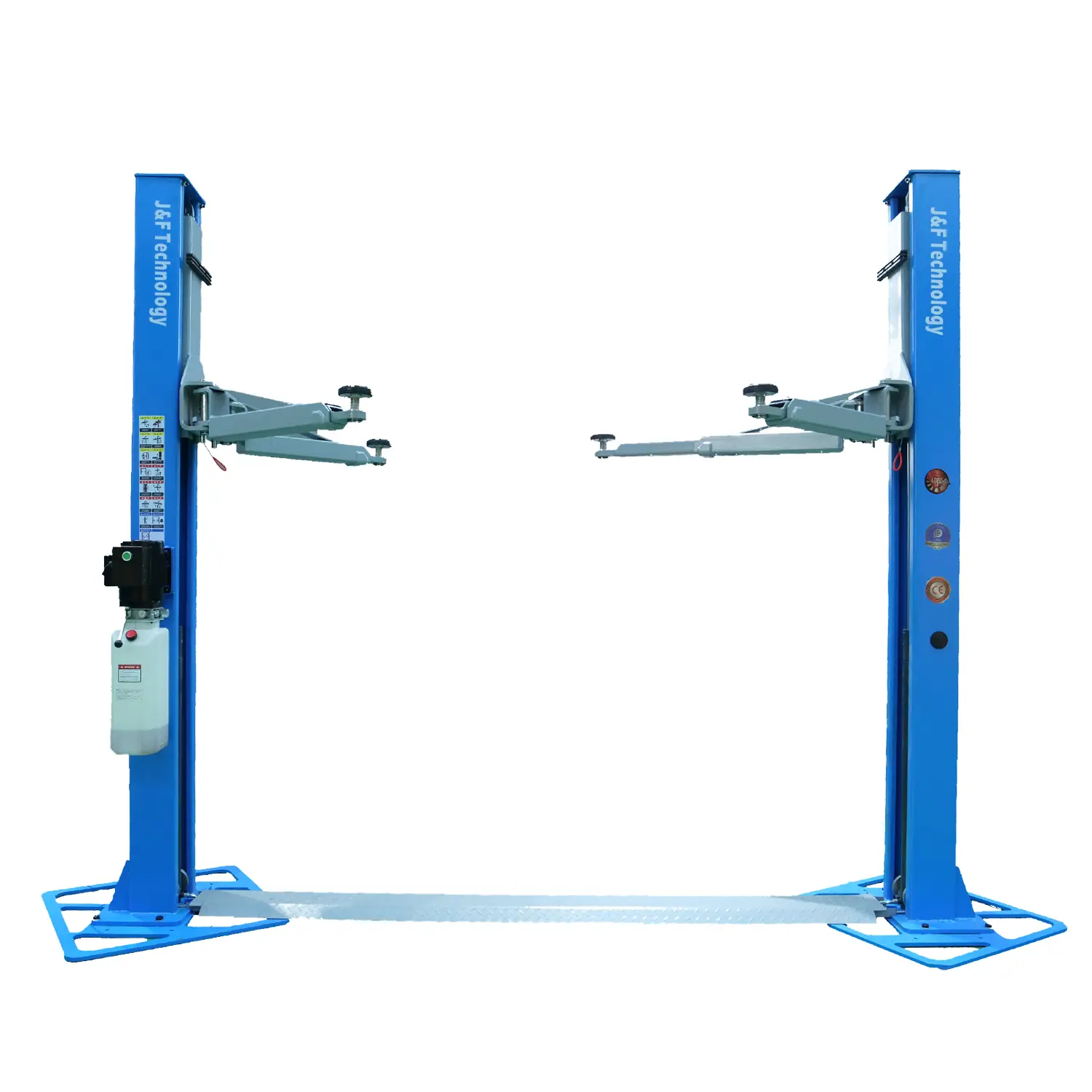

L-2-40D Double Point Lock Release

· 4000KG lifting capacity
· 2000mm lifting height with standard truck adapter
· Double lock release, convenient to release the column
· Passed dynamic test: 115% of the rated capacity & static test: 150% of the rated capacity
· Base Plate type for low ceiling workshops and garges
· Durable cylinders in each column carry with anti-surge valves
· Screw-up lifting pads can maximize the lifting height
· 2-stage symmetric arms, more flexible
· The arm locks engage and disengage automatically
· Optional aluminum motor avoids overheating and ensures long service life
· Durable powder coating
· Standard door protection pads to prevent possible damage when open the door without caution
· Pre-fixed hydraulic pressure prevents overloading operation
· CE certificated

product details

Product advantages

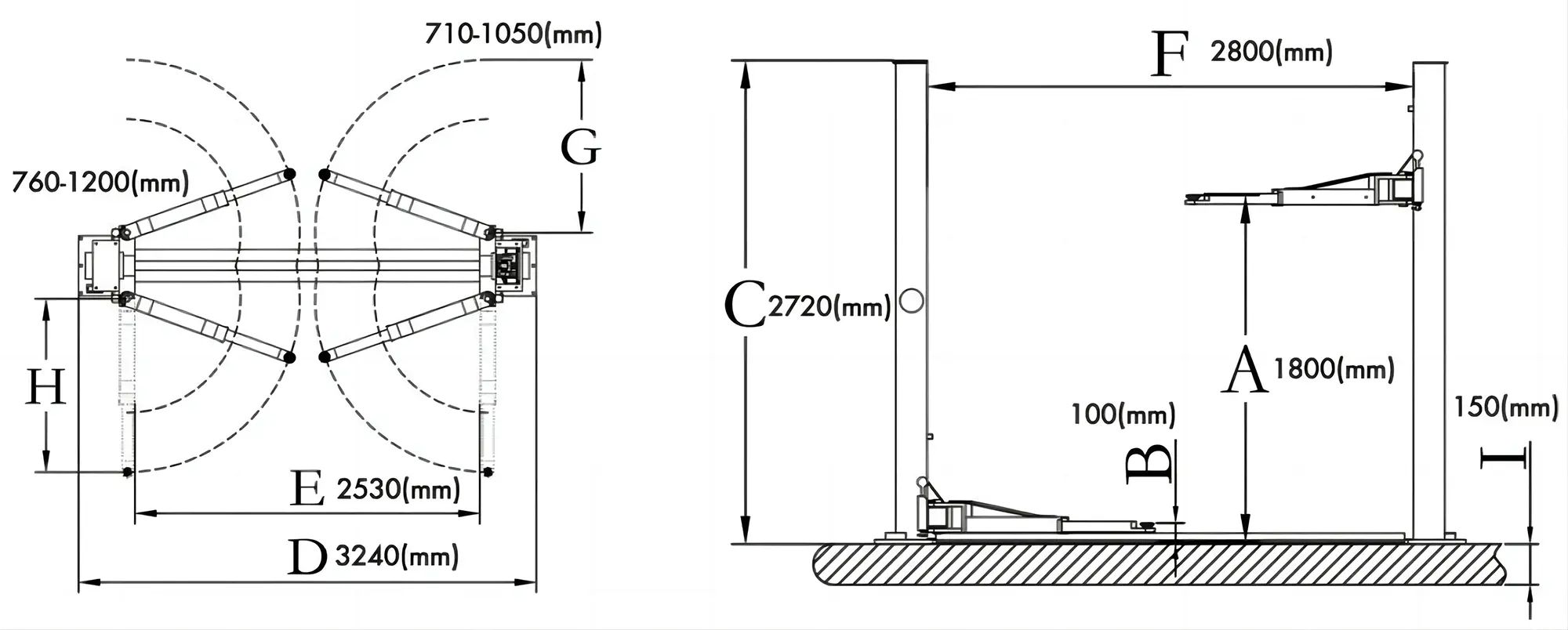

Overall Dimension

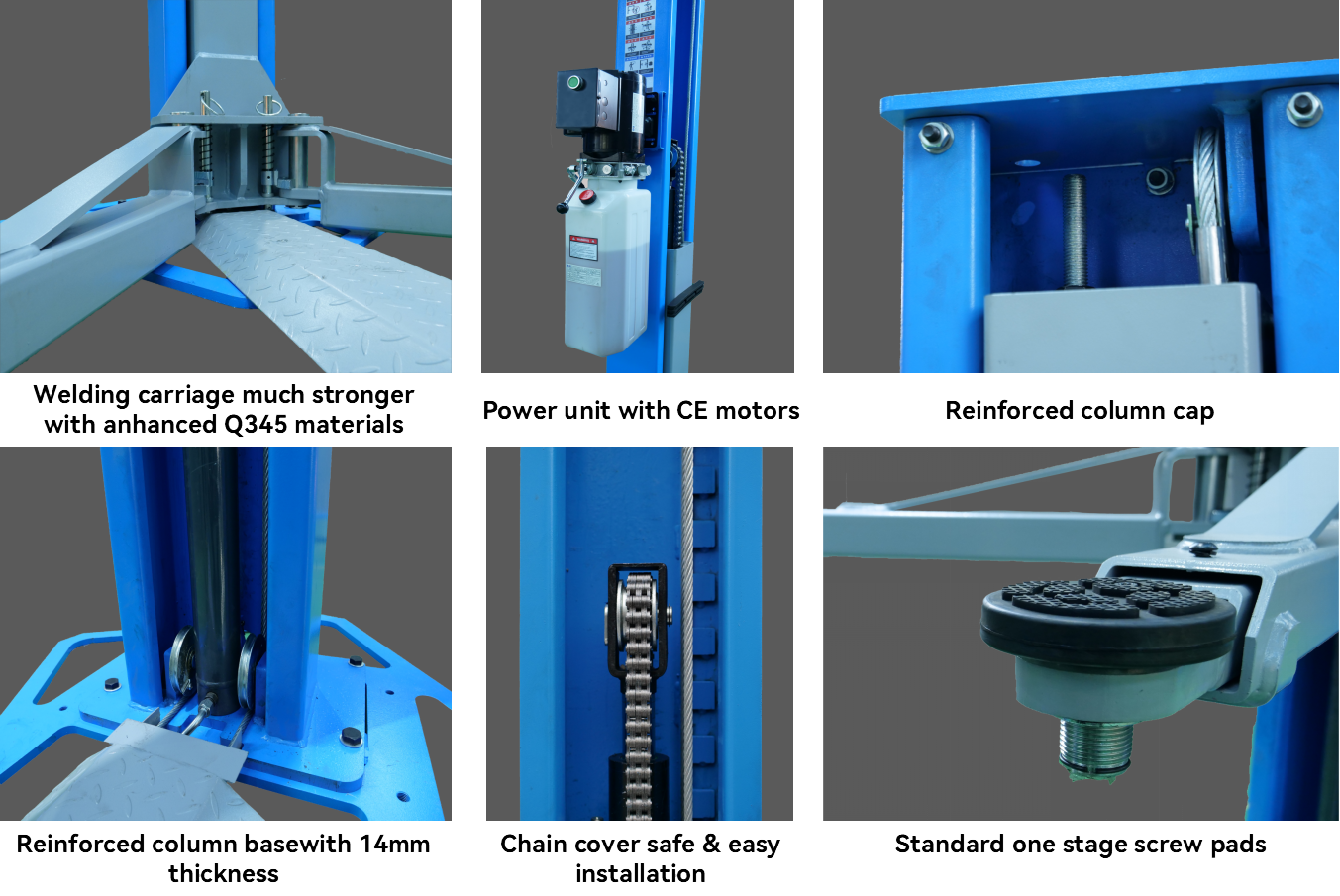

Product features

MODEL NO.	L-2-40D	L-2-40S	L-2-40E
Lock Release System	Double Point	Single Point	Electric/Automatic
Lifting Capacity	4000kg/9000lb	4000kg/9000lb	4000kg/9000lb
Max Lifting Height	1800mm/70.9”	1800mm/70.9”	1800mm/70.9”
Min Height	100mm/3.9"	100mm/3.9"	100mm/3.9"
Drive Through	2530mm/100"	2530mm/100"	2530mm/100"
Lifting Time	50s	50s	50s
Overall Height	2720mm/107"	2720mm/107"	2720mm/107"
Electricity supply	Muttiple choice for 110/220/230/240/380/400/415V

L-2-40D (Double Point Lock Release)

The L-2-40D is a versatile and robust vehicle lift designed to meet the demands of modern workshops, combining reliability, safety, and efficiency. Equipped with a dependable double-point lock release system, this model ensures enhanced safety and stability during operation, making it an ideal choice for professionals who prioritize secure handling of vehicles. Its lifting capacity of 4000kg (9000lb) accommodates a wide range of vehicles, from small cars to medium-sized SUVs, offering exceptional flexibility in various automotive applications. With a maximum lifting height of 1800mm (70.9"), the L-2–40D allows mechanics easy and comfortable access to the underside of vehicles, reducing strain and improving workflow efficiency. The lift’s overall height of 2720mm (107") and width of 3240mm (127.5") make it compact enough to fit into most standard workshop spaces without sacrificing functionality or stability. The generous drive-through width of 2530mm (100") ensures vehicles of varying sizes can easily enter and exit the lift, enhancing convenience and operational flow in busy work environments. One of the standout features of the L-2–40D is its adjustable arm reach. The front arms can extend from 710mm to 1050mm, while the rear arms range from 760mm to 1200mm. This adaptability makes the lift suitable for a variety of vehicle dimensions, including those with asymmetrical weight distributions or unique frame designs. This flexibility not only enhances usability but also reduces the risk of improper lifting, ensuring vehicle safety during maintenance. Powered by a 2.2kW (3HP) motor, the L-2–40D provides reliable and efficient performance, achieving full lifting within just 50 seconds. Its efficient motor minimizes downtime and boosts productivity, enabling technicians to focus on their tasks without unnecessary delays. Additionally, the lift's durable construction and high-quality materials ensure longevity, making it a cost-effective investment for workshops seeking a dependable lifting solution. Whether for routine maintenance, inspections, or extensive repairs, the L-2–40D delivers consistent, high-performance operation that meets the demands of professional workshops. Its combination of safety features, adaptability, and efficiency positions it as an essential tool for any automotive repair or service center.
